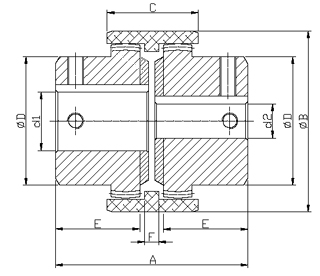

Name Manage ·Power Transmission Components 　·Couplings 　·Chains 　·Sprockets Hubs 　·Belts 　·Pulley 　·Speed Reducers 　·Shaft Collars ·Super Locks ·OEM Products   | Power Transmission Components >> Couplings >> Gear Couplings GEAR DRIVE COUPLING.   Size chart & Parameter Dimensions:mm Type Sleeve Hub Shaft Bore Max Torque Nm Weight 　 Dia. Lenngth Dia. Length 　 Min Max R.P.M. Rating Max Hub Sleeve 　 ￠B C ￠D E F d1 d2 　 　 KG KG VB-14 40 37 25 20 5 5 14 13000 12 22 0.08 0.025 VB-19 48 37 32 21 5 10 19 11000 18 30 0.1 0.035 VB-24 52 40 36 21 8 10 24 10000 24 36 0.15 0.035 VB-28 66 46 44 35 8 6 28 8000 48 85 0.38 0.07 VB-32 76 48 50 35 8 12 32 7300 65 110 0.5 0.09 VB-38 83 48 58 35 8 12 38 6500 95 170 0.65 0.105 VB-42 92 50 68 38 8 12 42 6200 115 220 0.93 0.13 VB-48 98 50 68 45 6 12 48 5500 160 300 1.11 0.16 VB-55 125 65 83 60 10 25 55 4600 300 600 1.86 0.36 VB-65 140 72 96 70 13 30 65 4000 400 800 3.17 0.57 count ：214  Date：2023-11-30 【Printing】      Home | About VARIED | Profile | Products | Purchase | Contact us Tel: 0086+571+8517 2866; 8517 2899; 8506 8177 Fax: 0086+571+8517 2811 浙ICP备06011324号　 Design by：www.varied.cn
