FCL FLEXIBLE COUPLING

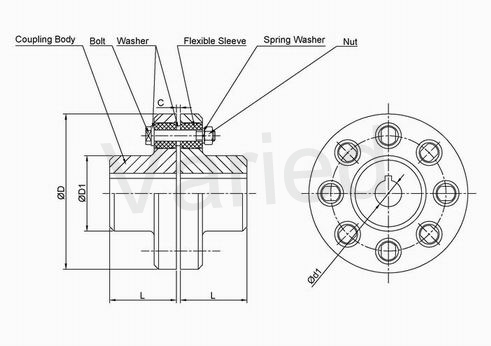

Size chart & Parameter
Type	Max torque (N.M)	Max speed (r.p.m.)	D	D1	d1	L	C	Bolt Number	Weight (kg)
FCL90	4	4000	90	35.5	11	28	3	4-M8×50	1.7
FCL100	10	4000	100	40	11	35.5	3	4-M10×56	2.3
FCL112	16	4000	112	45	13	40	3	4-M10×56	2.8
FCL125	25	4000	125	50	13	45	3	4-M12×64	4
FCL140	50	4000	140	63	13	50	3	6-M12×64	5.4
FCL160	110	4000	160	80	15	56	3	8-M12×64	8
FCL180	157	3500	180	90	15	63	3	8-M12×64	10.5
FCL200	245	3200	200	100	21	71	4	8-M20×85	16.2
FCL224	392	2850	224	112	21	80	4	8-M20×85	21.3
FCL220	618	2550	250	125	25	90	4	8-M24×110	31.6
FCL280	980	2300	280	140	34	100	4	8-M24×116	44
FCL315	1568	2050	315	160	41	112	4	10-M24×116	57.7
FCL355	2450	1800	355	180	60	125	5	8-M30×50	89.5
FCL400	3920	1600	400	200	60	125	5	10-M30×150	113
FCL450	6174	1400	450	224	65	140	5	12-M30×150	145
FCL560	9800	1150	560	250	85	160	5	14-M30×150	229
FCL630	15680	1000	630	280	95	180	5	18-M30×150	296
