| | Power Transmission Components >> Couplings >> NM Colings
|
|
|
|

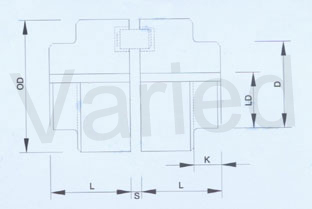

SIZE |
Bore |
D |
OD |
L |
K |
S |
|
Min |
Max |
|
50 |
7 |
19 |
33 |
50 |
25 |
12.5 |
2.0±0.5 |
|
67 |
9 |
28 |
46 |
67 |
30 |
15.0 |
2.5 ±0.5 |
|
82 |
10 |
32 |
53 |
82 |
40 |
16.0 |
3.0±1.0 |
|
97 |
12 |
42 |
69 |
97 |
50 |
20.0 |
3.0±1.0 |
|
112 |
14 |
48 |
80 |
112 |
60 |
35.0 |
3.5±1.0 |
|
128 |
18 |
55 |
90 |
128 |
70 |
41.0 |
3.5±1.0 |
|
148 |
22 |
65 |
107 |
148 |
80 |
48.0 |
3.5±1.0 |
|
168 |
28 |
75 |
125 |
168 |
90 |
54.0 |
3.5±1.5 |
|
SIZE |
Torque |
Max Speed (rpm) |
|
|
|
|
|
Nomal(N.M) |
Max（N.M） |
|
|
|
|
|
50 |
12.74 |
22.54 |
13500 |
|
|
|
|
|
67 |
21.56 |
39.20 |
10000 |
|
|
|
|
|
82 |
49.00 |
88.20 |
8000 |
|
|
|
|
|
97 |
102.90 |
186.20 |
7000 |
|
|
|
|
|
112 |
163.66 |
294.00 |
6000 |
|
|
|
|
|
128 |
261.66 |
470.40 |
5000 |
|
|
|
|
|
148 |
408.66 |
735.00 |
4500 |
|
|
|
|
|
168 |
681.10 |
1225.00 |
4000 |
|
|
|
|
|
|
