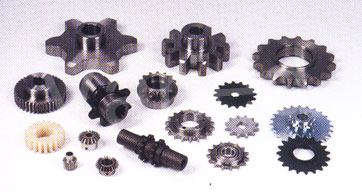

                                       STOCK  BORE SINGLE  STRAND SPROCKETS

	TYPE-A     TYPE-A  Steel Spockets are usually made from non-hardened steel SAE C-1020 but can be furnished                   Case-Hardened- Teeth to Rockwell C-Sale 45°to 55°on request.
	TYPE-B     TYPE-B Steel Sprockets are usually furnished with hardened teeth designed for small diameter sprockets.                      SAE C- 1040 is used for material.
	TYPE-BW   TYPE-BW Steel Sprockets are fabricated from TYPE-A sprockets welded to Hubs designed for large                         diameter   Sprockets. Non-hardened Steel SAE C-1020 is used for material.
	TYPE-C     TYPE-C Steel Sprockets have two hubs of equal projection from the tooth centerline welded to TYPE-A                         Sprockets. Non Hardened Steel SAEC-1020 is used for material.

                         STOCK  BORE MULTIPLE  STRAND SPROCKETS

                                                          Type-B and Type-BW are available.
