MODEL	V05L5T-2P
PARAMETER

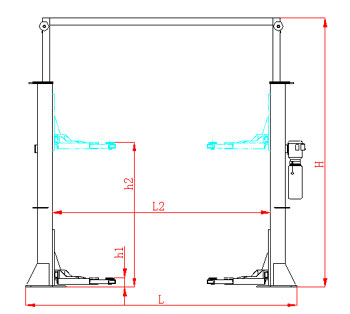

OVERALL WIDTH	L	MM	3570

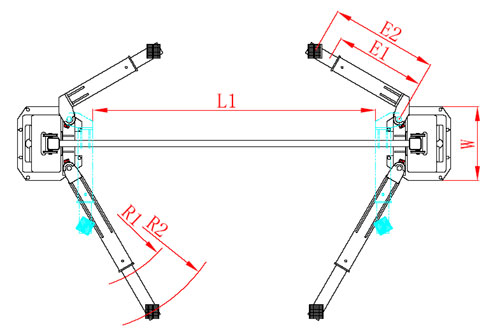

WIDTH OF CAR WAY	L1	MM	2330
WIDTH BETWEEN TWO POSTS	L2	MM	2877
OVERALL HEIGHT	H	MM	3635
MIN. (RUBBER PAD) HEIGHT	h1	MM	129
MAX. (RUBBER PAD)HEIGHT	h2	MM	1975
BASE WIDTH	W	MM	612
BACK ARM MIN. LENGTH	R1	MM	1010
BACK ARM MAX. LENGTH	R2	MM	1370
FRONT ARM MIN. LENGTH	E1	MM	748
FRONT ARM MAX. LENGTH	E2	MM	1108
LIFTING CAPACITY		KG	5000
NET  WEIGHT		KG	850
POWER SUPPLY	TENSION	V	110/380
	POWER	W	2HP
	FREQUENCY	HZ	50/60HZ
LIFTING TIME		S	50
FALLING TIME		S	42
